What are the maintenance requirements for the Single-Piece Filter Cage?

Regular cleaning and inspection are essential to maintain the performance of the Single-Piece Filter Cage. Due to its single-piece construction, cleaning is simplified as there are fewer parts to disassemble. We recommend using a soft brush and mild detergent to remove any clogged particles. Inspection should be performed to check for any signs of wear or damage, especially in high-temperature or chemically aggressive environments.

How does the Single-Piece Filter Cage handle high-temperature applications?

The Single-Piece Filter Cage is designed to operate in high-temperature environments, with an operating temperature range of up to 300°C. The Stainless Steel 304 material provides excellent heat resistance, ensuring that the filter cage maintains its structural integrity and performance even under extreme conditions. It is crucial to monitor the temperature and pressure within the filtration system to prevent any damage to the filter cage or the filtration process.

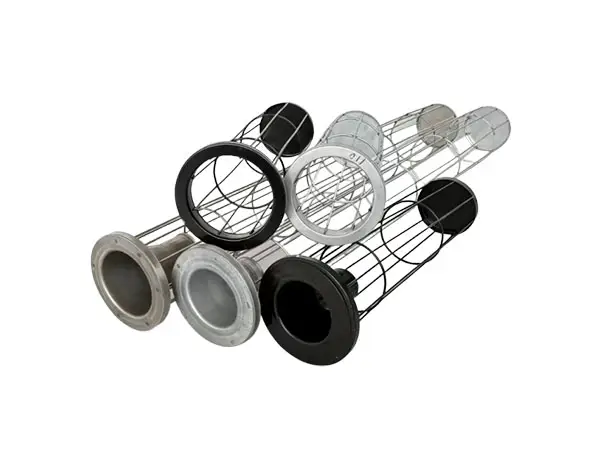

Single-Piece Filter Cage

Specifications and dimensions can be customized according to customer requirements.

The Single-Piece Filter Cage is engineered for high-performance filtration in industries such as pharmaceuticals, food processing, and chemical manufacturing. With its robust construction and precise mesh size, it ensures efficient particle retention and flow control. Our filter cages are designed to meet the demands of both small-scale operations and large-scale industrial processes.

Base Material

304 Stainless Steel

Vertical Wire（mm）

Φ3.0‑4.0

Number of Vertical Wires

8/10/12/16/20/24 pcs(customized)

Circular Ring Wire（mm）

Φ3.0‑4.0

WhatsApp Send E-mail

Why Choose Our Single-Piece Filter Cage for Your Filtration Needs?

The Single-Piece Filter Cage is a one-piece construction designed for ease of use and maintenance in filtration systems. Made from Stainless Steel 304, it offers excellent corrosion resistance and durability, making it suitable for a wide range of chemically aggressive environments. With a diameter of 100mm and a height of 150mm, it is designed to handle a load capacity of up to 500kg, catering to both small and large-scale filtration requirements.

Our filter cage is particularly beneficial in scenarios where high precision and reliability are paramount. The 50 micron mesh size ensures that only the finest particles are retained, providing clear and clean filtrate. This precision is crucial in industries such as pharmaceuticals where contamination can have severe consequences.

Compared to multi-piece filter cages, our single-piece design offers a more streamlined and efficient solution. It reduces the risk of leaks and improves the overall integrity of the filtration system. The single-piece construction also simplifies cleaning and maintenance, leading to lower downtime and increased productivity.

Stainless Steel 304 construction for superior durability and corrosion resistance.
50 micron mesh size for precise particle retention.
Single-piece design for easier maintenance and reduced risk of leaks.

Technical Specifications

Product Name	Base Material	Vertical Wire（mm）	Number of Vertical Wires	Circular Ring Wire（mm）	Ring spacing（mm）	Surface Treatment
304 Stainless Steel Filter Cage	304 Stainless Steel	Φ3.0‑4.0	8/10/12/16/20/24 pcs(customized)	Φ3.0‑4.0	150‑200	Pickling & Passivation, no coating

Key Technical Features and Advantages

STEP 1

304 Stainless Steel Material

Made from 304 stainless steel, offering excellent corrosion resistance suitable for various complex industrial environments.

STEP 2

Superior Corrosion Resistance

Unlike standard carbon steel cages, it does not rely on surface coatings for corrosion protection, making it ideal for humid environments and settings with mildly corrosive gases.

STEP 3

Precision Welding Process

Utilizes automated welding technology to ensure uniform, robust weld points and a stable overall cage structure.

STEP 4

Smooth Surface Finish

Weld points and connection areas undergo rigorous post-weld treatment to minimize burrs and sharp edges that could cause abrasion to the filter bag.

STEP 5

High Mechanical Strength

Features an optimized design of longitudinal and circumferential ribs, capable of withstanding the mechanical stresses associated with long-term filter bag operation and pulse-jet cleaning.

STEP 6
