How does the Multi-Section Filter Cage reduce transportation costs?

The segmented design of the Multi-Section Filter Cage allows for more compact packaging, reducing shipping volume compared to one-piece cages. This not only lowers freight costs but also minimizes the risk of damage during transit, which is particularly beneficial for international shipments.

What are the benefits of the high-precision section connections?

High-precision section connections ensure that each cage section aligns smoothly and assembles securely. This minimizes deformation during installation and maintains consistent support for the filter bag, which is crucial for the longevity and performance of the dust collection system.

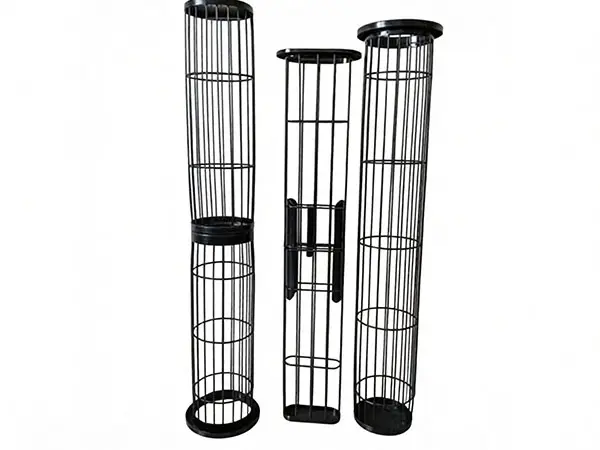

Multi-Section Filter Cage

Efficient Support for Long Filter Bags in Industrial Dust Collection

The Multi-Section Filter Cage is a segmented support structure designed for long filter bags used in pulse jet baghouse dust collectors. It offers significant advantages in transportation, installation, and maintenance without compromising structural strength. Engineered for demanding industrial environments, it provides stable support, preventing bag collapse and premature wear.

Customization Service:

Specifications and dimensions can be customized according to customer requirements.

WhatsApp Send E-mail

Why Multi-Section Filter Cage is Essential for Large-Scale Dust Collection

A multi-section filter cage is engineered to support long filter bags in pulse jet baghouse dust collectors, offering a modular design that exceeds conventional transportation limits. This design maintains excellent rigidity throughout the operating cycle, ensuring stable support for extended filter bag lengths and preventing bag collapse and excessive abrasion.

A multi-section filter Cage is engineered to support long filter bags in pulse jet baghouse dust collectors, offering a modular design that exceeds conventional transportation limits. This design maintains excellent rigidity throughout the operating cycle, ensuring stable support for extended filter bag lengths and preventing bag collapse and excessive abrasion.inimizing the risk of damage during transit.

The multi-section design also facilitates easier installation and maintenance, as individual cage sections are lightweight and easier to handle inside baghouse compartments. This reduces equipment downtime and labor intensity, leading to increased efficiency in maintenance operations.

Modular design for support of extra-long filter bags
High-precision section connections for secure assembly
Reduced transportation costs and simplified international logistics

Key Technical Features and Benefits

STEP 1

Strong Structural Stability

Constructed with high-strength steel wire, the Multi-Section Filter Cage resists bending and vibration, maintaining its shape even under continuous pulse cleaning cycles to ensure reliable filter bag support.

STEP 2

Smooth Welded Surface

Each longitudinal wire and support ring is resistance welded to create smooth joints without sharp edges, reducing friction between the cage and filter bag, thereby extending the service life of the filter bag.

STEP 3

Corrosion-Resistant Surface Treatment

Available with multiple surface finishing options including galvanized, silicone coating, epoxy coating, organic coating, and stainless steel construction, these treatments improve corrosion resistance and ensure long-term durability under various operating conditions.

STEP 4

Custom Manufacturing

Our engineering team can manufacture multi-section filter cages according to specific baghouse requirements, including cage diameter, overall length, number of sections, and other critical dimensions, ensuring optimal filtration performance.

FAQs about Multi-Section Filter Cage
