What is the purpose of a flat filter cage in dust collection systems?

A flat filter cage supports flat or envelope-style filter bags inside industrial dust collectors. It maintains the bag's shape during filtration and pulse cleaning, ensuring efficient dust removal and extending filter bag life.

What materials can be used for flat filter cages?

Common materials include carbon steel, galvanized steel, and stainless steel. The most suitable material depends on operating temperature, humidity, corrosion levels, and process conditions.

Can flat filter cages be customized?

Yes, we provide customized dimensions, wire diameters, reinforcement structures, connection methods, surface treatments, and venturi designs according to customer drawings or equipment specifications.

How does welding quality affect filter bag life?

Poor welding can leave sharp burrs that damage filter bags during operation. Precision welding and polished joints reduce friction and mechanical wear, helping significantly extend filter bag service life.

Which industries commonly use flat filter cages?

Flat filter cages are widely used in cement plants, steel mills, power stations, mining operations, waste incineration facilities, chemical plants, and other industrial dust collection systems requiring efficient particulate control.

What surface treatments are available for flat filter cages?

Available finishes include hot-dip galvanizing, electro-galvanizing, silicon coating, epoxy coating, and stainless steel polishing to improve corrosion resistance and durability under different operating conditions.

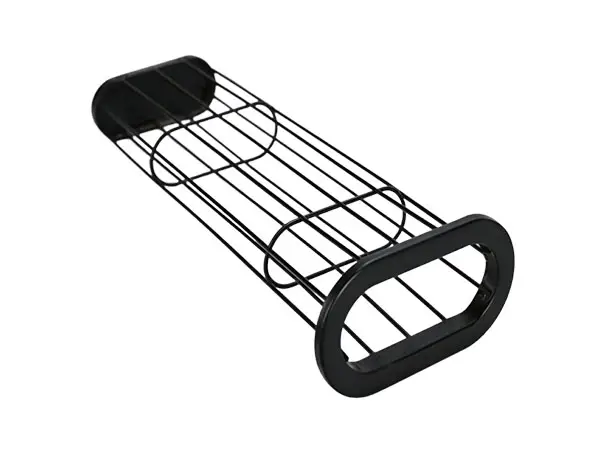

Flat Filter Cage

Maximize Filtration Area with Precision-Made Flat Filter Cages

Our flat filter cage is engineered for high-efficiency dust collection, offering structural support to flat filter bags in compact spaces. Made from premium materials and featuring precision welding, these cages ensure minimal wear on filter bags and maintain stability during pulse cleaning. Ideal for industries like cement, steel, and power generation where space and efficiency are paramount.

Customization Service:

Specifications and dimensions can be customized according to customer requirements.

WhatsApp Send E-mail

Why Choose Our Flat Filter Cage for Industrial Dust Collection?

A flat filter cage is a critical component in industrial dust collection systems, designed to support flat or envelope-style filter bags. It maximizes the filtration area within a limited installation space, making it ideal for compact baghouses and high-capacity filtration applications. Manufactured from high-quality carbon steel, galvanized steel, or stainless steel, our cages feature precision welding and strict dimensional control, ensuring easy installation and minimal wear on filter bags.

These cages are engineered to maintain filter bag stability during continuous pulse-jet cleaning cycles, which helps improve filtration efficiency, reduce maintenance frequency, and extend the service life of filter bags. They are widely used across various industries, including cement production, steel manufacturing, power generation, mining, waste incineration, and chemical processing, providing reliable structural support under demanding operating conditions.

Compared to traditional round filter cages, our flat filter cages offer a more efficient use of space and superior filtration performance. They are designed to withstand the rigors of pulse cleaning, ensuring that dust cakes release efficiently while maintaining stable airflow and lower operating resistance.

High-strength structural design for rigidity and resistance to deformation.
Smooth welding protects filter bags from abrasion, extending their lifespan.
Precision manufacturing ensures easy installation and reduces maintenance downtime.

Key Technical Features of Flat Filter Cages

STEP 1

High-Strength Structural Design

Manufactured from premium steel wire with optimized reinforcement, our flat filter cages provide excellent rigidity and resistance to deformation during continuous operation and pulse cleaning.

STEP 2

Smooth Welding for Filter Bag Protection

Every connection is precisely welded and carefully polished to eliminate sharp edges or burrs. The smooth surface significantly reduces abrasion, helping extend the lifespan of expensive filter bags.

STEP 3

Precision Manufacturing for Easy Installation

Strict dimensional tolerances ensure every flat filter cage fits accurately into the dust collector. Consistent manufacturing improves installation efficiency and reduces maintenance downtime.

STEP 4

Corrosion-Resistant Surface Treatments

Cages can be supplied with galvanized, silicon-coated, epoxy-coated, or stainless steel finishes to improve corrosion resistance and durability in humid, acidic, or high-temperature environments.
